2-Core Cable PoE Network Transmitter Application Examples
2023/8/12 9:44:00
Project Requirements:
A hotel abroad for network construction, the main body of the project has 45 floors, requiring full coverage of indoor Wifi, including the elevator car. The project design requirements, choose to use the elevator machine room dedicated power supply scheme, free from the elevator side of the impact of pulling the gate maintenance, the use of PoE function of the AP terminal to achieve network signal coverage.
After researching the site environment and analyzing the traditional transmission scheme, the following problems exist:
Network cable: the accompanying cable built-in network cable (Category VI) communication length does not meet, and the design service life can not reach 8 years.
Fiber optic: the built-in fiber optic follow cable is expensive and does not meet the requirements of PoE power supply.
Bridge: There are more wireless devices in the shaft, which is easy to cause crosstalk and does not meet the PoE design requirements.

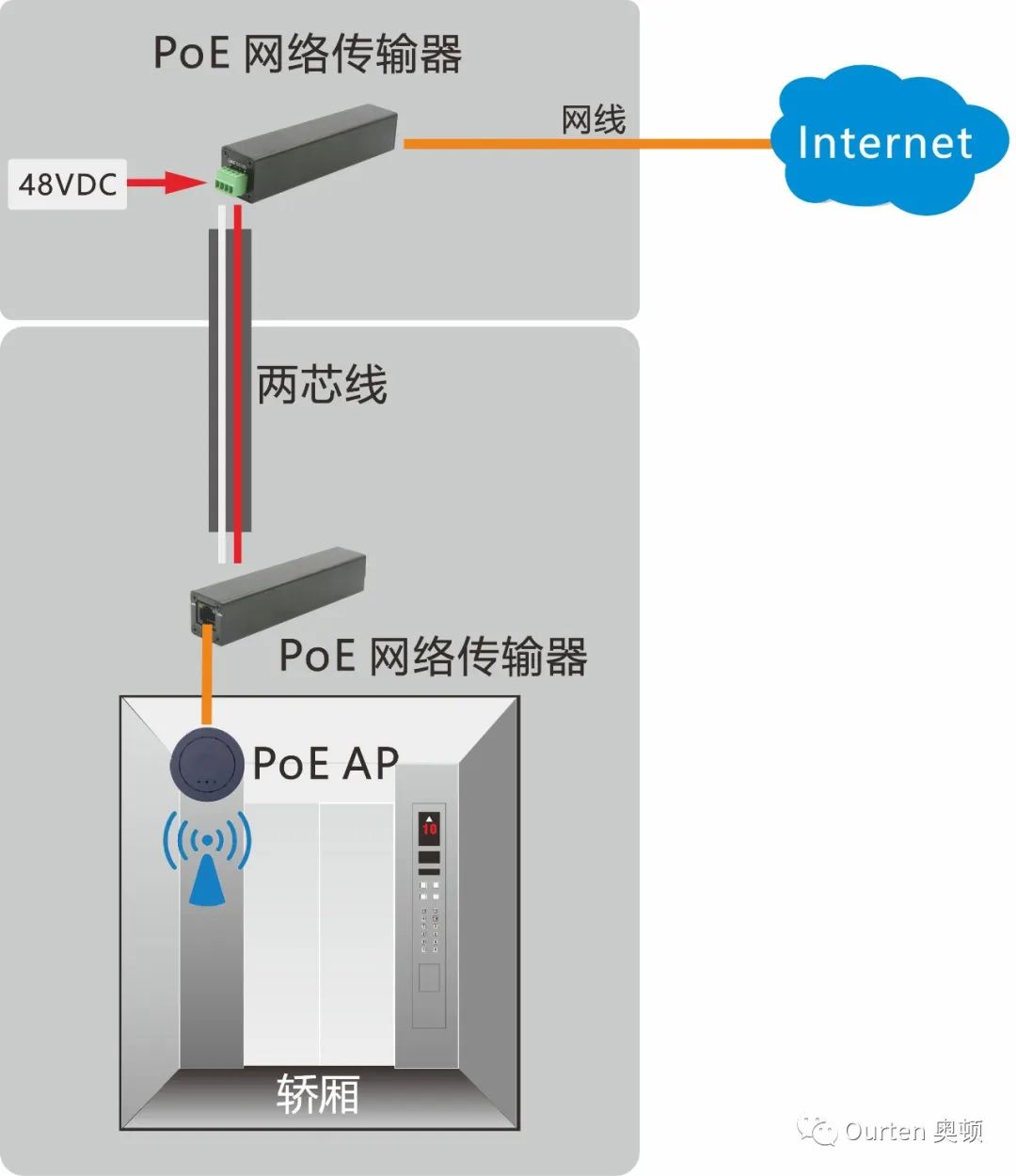

After discussion to determine the use of two-core wire PoE transmission program, the design diagram is as follows:

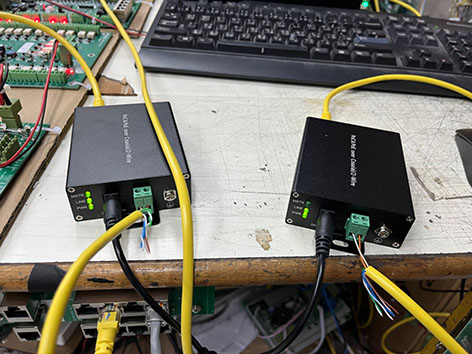

PoE Network Transmitter/receiver HT-1100T-P/HT-1100R-P
Solution Features
PoE transmission distance up to 500 meters, real-time rate of 94Mbps
With the cable two-core wire, service life> 3 million times bending (> 10 years), the average service life of the network transmitter> 8 years
Wired carrier signal (OFDM technology), transmission network signal stability
No additional wiring, construction costs reduced by 30%, plug and play
Application results
Through the application of two-core wire PoE transmitter program in this hotel, the project can be completed quickly, and since put into operation, the product communication effect is stable, and get the user's affirmation and praise.
