Description
HT2005RS1-12 Rack mounted fiber optic patch panel is used in 19'' cabinet for fiber connection, distribution and protection.
HT2005RS1-12 ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management.
HT2005RS1-12 ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction , ODN construction, LAN, Metro network and CATV.

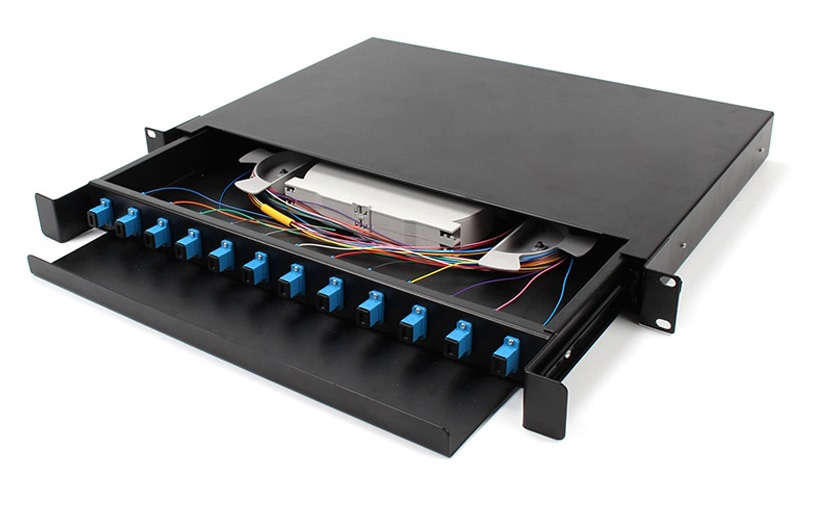

12/24core 1U Drawer Type rack mount fiber optic patch panel
ODF Patch Panel
Technical specifications
|
Adaptor Type |
SC,FC,ST,Duplex SC,Duplex LC |
|
Capacity |
12、24fibers |
|
Max. qty of splice tray |
2 pcs |
|
Max. capacity of splice tray |
12 Fibers |
|
Body Material |
Cold rolled steel or stainless steel |
|
Surface Treatment |
Powder coating black or white color |
|
Color |
RAL7035 |
|
Installation Method |
Standard 19 inch rack mount |
|
Size Dimension(mm) |
485(W) x290(D)x44(H)(19"1U) for 12/24F |
|
Package dimension |
520*320*43mm, 5pcs/ctn |
|
Weight |
2.90kgs |
|
Strengthen Member Fixation |
Yes |
|
Bending Radius(mm) |
> 40 |
|
Operation temperature |
-20~55℃ |
|
Storage temperature |
-40~75℃ |
|
Relative humidity |
0~95% non-condensing |
|
Warranty |
2years |
Customizable items: ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Printing Ordering Information HT2005RS1-12/24-XX -XX- XX-- XX- XX-- XX 1 - 2 - 3 - 4 - 5 - 6
|
1 Body Material |
2 3 Adaptor |
4 Capacity |
5 Pigtail |
6 Body Color |
|
01:Cold Rolled Steel |
Nil:No Adaptor |
12:12F |
09B:0.9mm Bunchy |
WT:White |
|
02:Stainless Steel |
SU:SU/UPC |
24:24F |
09S:0.9mm Single |
BK:Black |
|
SA:SA/UPC |
48:48F |
09R:0.9mm Ribbon |
GY:Grey |
|
|
FU:FC/UPC |
72:72F |
20S:2.0mm Single |
||
|
FA:FC/APC |
96:96F |
30S:3.0mm Single |
||
|
LU:LC/UPC |
||||
|
LA:LC/APC |
