VGA/DVI/HDMI/USB To Fiber Converter

USB 3.0 Fiber Extender Max 250 Meters w/SFP Module, Backward Compatible USB 2.0/1.1

Category : HD Video Transmission > VGA/DVI/HDMI/USB To Fiber Converter

Max extension distance 200 Meters (820 FT) over fiber (Single-Mode or Multi-Mode fiber)
Support USB 3.0 Super speed up to 5 Gbps, USB 3.0 Type A Receptacle
Backwards compatible with USB 2.0 and USB 1.1
with 10 Gbps SFP module, pure hardware design, no driver needed, compatible with all operation systems, support Full Duplex.
Supports Kinect devices & Leap motion devices ( VA/VR systems); Supports Picoscope Oscilloscopes; Extend high bandwidth USB 3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
ESD Static Protection Circuit

Description
Parameter
Application
Download
Related

HT101-U3U2 includes a transmitter(client-side) and a receiver(host-side), which can extend the Superspeed USB 3.0/2.0/1.1 to a remote location over 1 or 2 core fiber cable, max distance 250 Meters (820 FT)(Single-mode or Multi-mode optical fiber).

SPECIFICATION:
Optical:
Connector:1 x LC, or 2 x LC
Wave length:1310nm
Support Fiber types: 50/125μm, 62.5/125μm, 9/125μm
Each USB port supports Data rates:
* Super-Speed (5.0 Gbps)
* High-Speed (480 Mbps)
* Full-Speed (12 Mbps)
* Low-Speed (1.5 Mbps)
Physical Size (L× W ×H):
1) Transmitter: 104 x 104 x 28 mm ; 2) Receiver: 51 x 33 x 17.5 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg

Tx power: 5VDC, powered by USB

Rx Power Voltage:5V 5A, with external power adaptor

sender power consumption:<5W
receiver power consumption:<25W
Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)

Package:
1. 1 x transmitter (client side) with SFP optical module.
2. 1 x receiver (host side) with SFP optical module.
3. 1 x Power Adapter DC 5~12V with US/EU/UK/AU plug.

4. 1 x Manual.

Note：
Backwards compatible with USB 2.0 and USB 1.1

USB TO FIBER CONVERTER

應用領域
Kinect體感周邊外設
工業視頻傳輸
機器視覺系統
高清視頻監控系統
高速數據采集系統
遠程存儲
數字標牌及電視墻

工業打印機系統

USB3.0光纖延長器

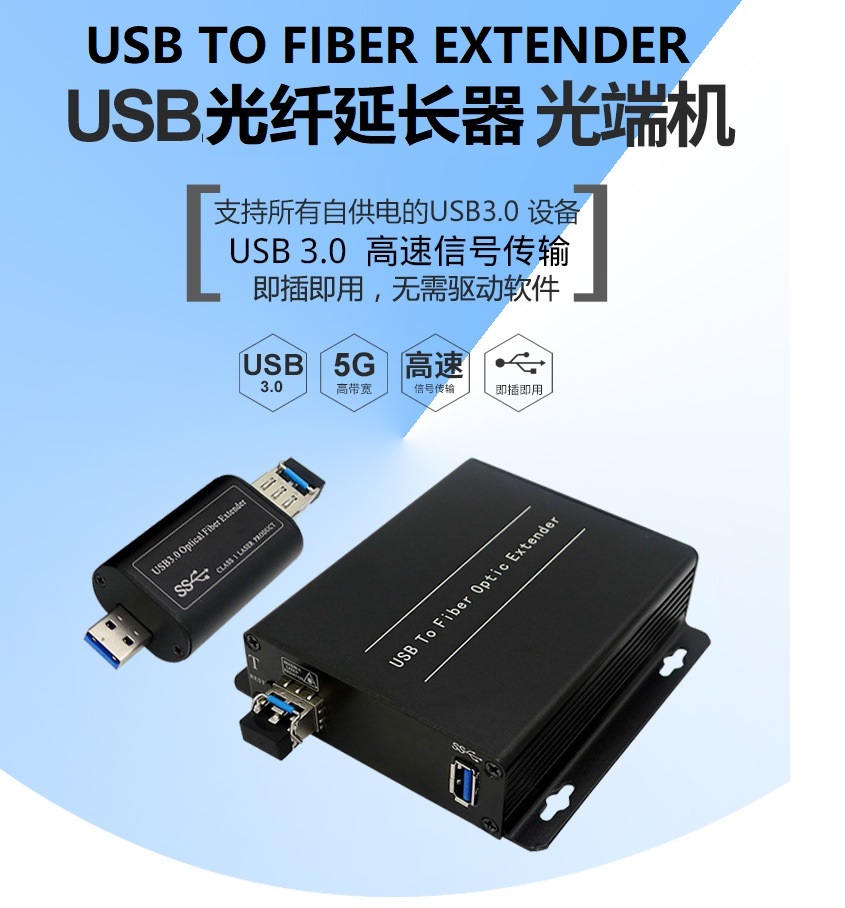

USB 3.0 To fiber extender picture
