PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network (PON) systems. It is one of the most important passive components in optical networks. H&T is able to provide PLC optical splitter in Multiple modes such as 1xN, 2xN, MxN, etc . To meet the diversified demand of customers. Compared with FBT (Fused) splitter, PLC has the advantages of wavelength insensitivity, uniform splitting, high stability and high density. It is widely used in Local Area Network , Data Center , FTTX and other fields.
|
Item
|
Unit
|
Plug-in type PLC optical splitter
|
|
Operating Wavelength
|
nm
|
1260~1650
|
|
Fiber type
|
/
|
G652D/G657A1/G657A2
|
|
Tube type
|
um
|
250um Fiber or 900um loose tube
|
|
Channel type
|
/
|
1x2
|
2x2
|
1x4
|
2x4
|
1x8
|
2x8
|
1x16
|
2x16
|
1x32
|
2x32
|
1x64
|
2x64
|
|
Insertion loss
|
dB
|
≤4.5
|
≤4.7
|
≤7.7
|
≤7.9
|
≤11.0
|
≤11.3
|
≤14.2
|
≤14.5
|
≤17.5
|
≤18.0
|
≤21.1
|
≤21.5
|
|
Uniformity
|
dB
|
≤0.4
|
≤1.0
|
≤0.6
|
≤1.5
|
≤0.8
|
≤1.5
|
≤1.2
|
≤2.0
|
≤1.5
|
≤2.0
|
≤2.0
|
≤2.5
|
|
PDL
|
dB
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.35
|
≤0.5
|
|
TDL
|
dB
|
≤0.5
|
|
Return loss
|
dB
|
≥55
|
|
Directionality
|
dB
|
≥55
|
|
Working power
|
mW
|
≤500
|
|
Operating temperature
|
℃
|
-40~+85
|
|
Storage temperature
|
℃
|
-40~+85
|
|
Package size (LxWxH)
|
mm
|
130x100x25/130x100x50/130x100x102
|
* With Connector
PLC光分路器，主要適用于無源光網絡(PON)系統里面的光信號耦合及分配，具有對波長不敏感、高穩定性及分光均勻等優勢，是光網絡中最重要的無源器件之一，被廣泛應用于局域網、CATV、FTTX等領域：

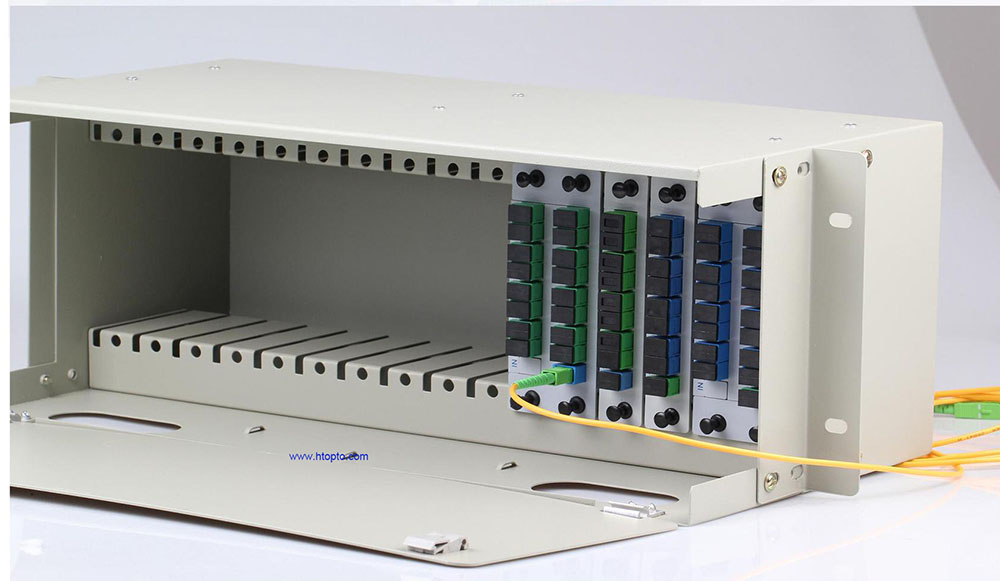

4U Rack chassis:
