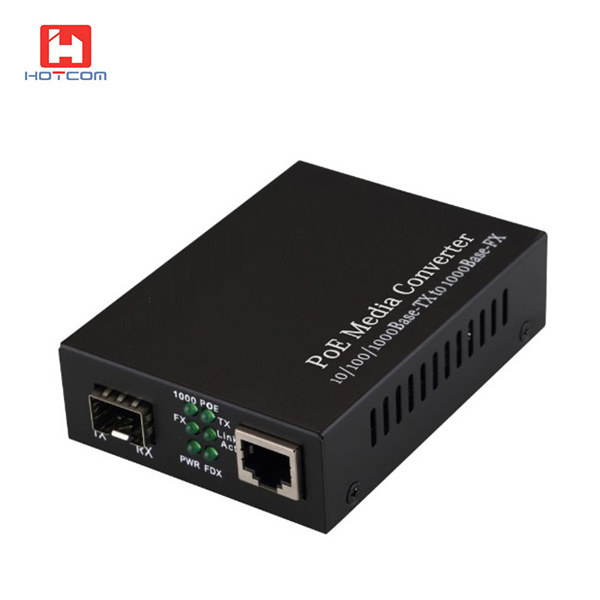

千兆PoE 1光1電SFP插槽型

概述：

HT102P-SFP系列PoE(PSE)以太網光纖收發器可用于以太網的電接口與光接口之間的轉換，同時通過網線直接給后端設備供電，完全兼容PoE(以太網供電)技術標準IEEE802.3af和IEEE802.3at，因此后端的PoE(PD)設備可以靈活安裝而不必考慮電源布線的問題。本光纖收發器包含1個10/100/100M以太網電口和1個千兆光纖接口，它將以太網的傳輸距離從銅芯雙絞線的100米延長至550米（多模光纖）或120千米（單模光纖）。

HT102P-SFP系列可以方便地實現各種網絡設備之間的互聯，適用于電信、廣電、寬帶網絡、安防監控等需要高性能、高可靠性的網絡環境中。

應用方便靈活
可選擇插入IEEE 802.af國際標準PoE設備，像無線訪問點AP或基于IP的網絡監控?cái)z像頭。放置這些IEEE802.3af國際標準的PoE終端設備到需要放置的位 置——墻壁的高處或者天花板上為最大的覆蓋—或其它你需要放置它們的地方。通過標準的5類以太網線傳輸電源和數據。非常方便靈活，特別受到安防監控網絡攝 像機安裝工程商的喜愛。

即插即用
基于標準的HT102P-SFP輕易的整合了你現有的10/100以太網絡，并自感知和自調整網絡的速度和網線類型。對于PoE，這交換機自動發現兼容IEEE802.3af的PoE終端設備，并且提供所需的電源。前面板指示燈可持續監測交換機的信息和PoE的工作狀態。

靜音和緊湊
小巧便利的設計， 耐用的金屬外殼。它可以使用包裝盒內置的配件輕易的被安置在桌面或者墻上。無風扇設計安靜的溶入你的小型辦公室的環境。

超值
將數據交換和基于以太網供電整合入了一個單位內， HT102P-SFP節省了空間，減少了線纜并且消除了連接電源插座的需要—最小化安裝費用，簡單化了PoE性能設備的安裝，和消除了需要專職電工或延 長電源線的麻煩。總的來說， 一個最大好處是具有最經濟的價格。

綠色環保
較之非綠色版本節能60%，自動待機模式和線纜長度偵測功能——即端口未連接時，自動待機模式節省能源；網線短于10米時，更低的傳輸功率。包裝中至少80%的可回收資源



適用環境
◆ 百萬高清監控傳輸與供電

◆ 無線AP布局傳輸與供電
◆ 網絡電話傳輸、智能家居系統
◆ 城市智能交通監控系統（ITS）、平安城市、無線城市
◆ 高速公路監控系統、電子道路監控、抓拍系統
◆ 大型廠礦企業安防監控系統、網絡多功能系統
◆ 遠程多媒體教學/ 校園監控、電視會議系統
◆ 樓宇對講、無線通信 、視頻監控

POE供電千兆SFP光纖收發器

技術規格

Power Adapter: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.

For example: HT102P-SFP-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)

Reference Equipment

Hotcom SFP PoE Media Converter can be compatible or replace with the below equipment, providing you the same high performance at a lower cost to meet your network upgrade needs.

What is PoE Media Converter?

A fiber media converter is a simple but effective device that converts fiber optic and other types of media. Fiber media converters are most commonly used to transmit data between fiber and copper in order to extend a network or add fiber optic cabling into a copper based network. Because these devices can be deployed practically anywhere in the network and are inexpensive, they are also being used for a variety of additional purposes. More about fiber media converter, please check here.

What is PoE Media Converter?

PoE media converters combine data and power on a single cable, allowing for copper to fiber connectivity while enabling Power over Ethernet to PoE certified devices including wireless access points, IP cameras, and VoIP phones. The converter interfaces between the fiber infrastructure and copper ports on VoIP phones and also provides power to the IP phone. The PoE media converter excels in industrial and high-density applications because to its perfect compliance with Fast Ethernet standards. PoE fiber converters can be used to bridge the gap between different types of business networks and even expand network connections beyond normal cabling.
How does PoE Media Converter work?

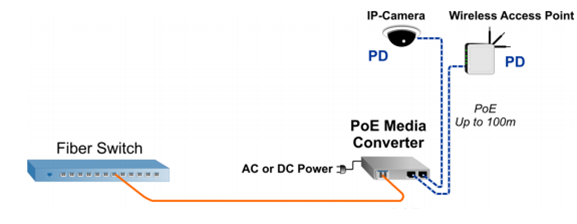

The data transmission between a fiber switch and a remote or wireless access point is supported by a typical 10/100/1000M PoE media converter. This media converter also provides power to the access point. A fiber optic cable connects the fiber switch to the PoE media converter. The fiber is run a far way to the PoE media converter, which converts the fiber back to copper UTP and is positioned near a DC or AC power source. PoE (DC power) is injected via the UTP cable by the PoE media converter, which also serves as a micro switch for power supply. The IP camera is positioned at the opposite end of the UTP cable, up to a hundred meters distant from the PoE media converter.

How to select a PoE Media Converter?
To select the right PoE media converters for your project, many elements should be considered. You should firstly consider where you want to use the media converters and how to use them. Then, you should know the functions and characters. Below are some important factors to consider when choosing PoE media converter.
Data Rate: the data rate of the PoE media converter should be firstly considered. The most commonly used are 10/100mbps, 10/100/1000mbps, and 1000mbps.
Mode Type: the mode type of the PoE media converter can be split to single mode and multimode. When connected to a switch or hub that supports half duplex, packet loss may occur since some PoE media converters can only be used in full duplex mode. As a result, check to see if the PoE media converter supports half duplex, full duplex, or both half duplex and full duplex.
Port Type and Port Number: PoE media converter also has various port types. The most commonly used types for fiber optic on the fiber media converters are ST, SC and SFP. The number of the power should depend on the applications.
Power Requirement: the most commonly used are AC power supply, DC power supply, internal power supply, and external power supply.

Summary

Nowadays, several advanced PoE media converters are available to assist maximize the value of hybrid networks with fiber links. Depending on the PoE fiber converter, it can be connected to a variety of devices to provide both power and data. If you have any questions, you can contact us.
H&T offers complete series of PoE Media Converters, including 10/100 POE media converter, 10/100/1000M media converter,multi-port PoE media converter, 10G uplink PoE media converters etc. For more information, please visit www.6467898.cn or call us @0086-13922888473.
